316 Stainless Steel Single-Shank Balls

316 Stainless Steel Single-Shank Balls

Price range: $3.19 through $14.38

316 Stainless Steel Single-Shank Balls

Choose the exact ordering SKU for the wire diameter. Machine swaging is required; verify the finished shank and ball dimensions.

Need technical information?

Questions about specifications, installation, compatibility, pricing, or shipping?

Request Product Information
SKU: FAM-S0755 Category:

316 Stainless Steel Single-Shank Balls

S0755 single-shank balls are precision-machined Grade 316 stainless steel cable terminals for marine, architectural and industrial assemblies.

Choose the exact ordering SKU for the wire diameter. Machine swaging is required; verify the finished shank and ball dimensions.

Technical Specifications

SKU Number Wire (A) B Before B After Ball Before Ball After X Y Z Weight
S0755-0001 1/16 in. 0.13 in. 0.11 in. 0.21 in. 0.19 in. 0.21 in. 0.27 in. 0.21 in. 0.01 lb./100
S0755-0002 3/32 in. 0.17 in. 0.14 in. 0.28 in. 0.25 in. 0.28 in. 0.38 in. 0.28 in. 0.4 lb./100
S0755-0003 1/8 in. 0.22 in. 0.19 in. 0.35 in. 0.32 in. 0.35 in. 0.50 in. 0.35 in. 0.6 lb./100
S0755-0004 5/32 in. 0.26 in. 0.22 in. 0.42 in. 0.38 in. 0.42 in. 0.62 in. 0.42 in. 0.01 lb.
S0755-0005 3/16 in. 0.30 in. 0.26 in. 0.49 in. 0.44 in. 0.49 in. 0.73 in. 0.49 in. 0.01 lb.
S0755-0006 7/32 in. 0.35 in. 0.30 in. 0.56 in. 0.51 in. 0.56 in. 0.85 in. 0.56 in. 0.02 lb.
S0755-0007 1/4 in. 0.41 in. 0.35 in. 0.63 in. 0.57 in. 0.63 in. 0.96 in. 0.63 in. 0.03 lb.
S0755-0009 5/16 in. 0.48 in. 0.41 in. 0.77 in. 0.69 in. 0.77 in. 1.19 in. 0.77 in. 0.05 lb.
S0755-0010 3/8 in. 0.55 in. 0.48 in. 0.90 in. 0.82 in. 0.90 in. 1.44 in. 0.90 in. 0.09 lb.

Dimensions are nominal and may change without notice. Confirm compatibility and installation requirements before ordering.

SSM Product Information

Key Specifications

Family SKU FAM-S0755
Ordering series S0755
Material 316 Stainless Steel
Available ordering choices 9
SSM Technical Specifications

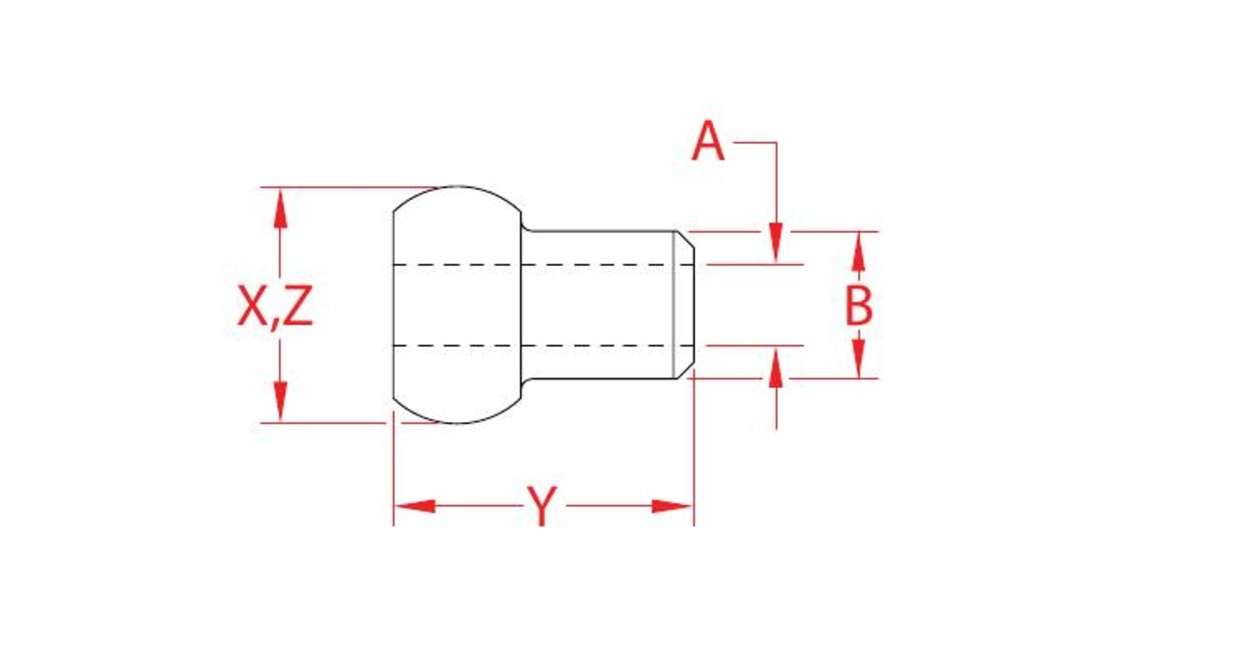

Dimensional Drawing

316 Stainless Steel Single-Shank Balls dimensional drawing

Drawing letters correspond to the dimensions in the size table below.

Available Sizes

SKU Number Wire (A) B Before B After Ball Before Ball After X Y Z Weight
S0755-0001 1/16 in. 0.13 in. 0.11 in. 0.21 in. 0.19 in. 0.21 in. 0.27 in. 0.21 in. 0.01 lb./100
S0755-0002 3/32 in. 0.17 in. 0.14 in. 0.28 in. 0.25 in. 0.28 in. 0.38 in. 0.28 in. 0.4 lb./100
S0755-0003 1/8 in. 0.22 in. 0.19 in. 0.35 in. 0.32 in. 0.35 in. 0.50 in. 0.35 in. 0.6 lb./100
S0755-0004 5/32 in. 0.26 in. 0.22 in. 0.42 in. 0.38 in. 0.42 in. 0.62 in. 0.42 in. 0.01 lb.
S0755-0005 3/16 in. 0.30 in. 0.26 in. 0.49 in. 0.44 in. 0.49 in. 0.73 in. 0.49 in. 0.01 lb.
S0755-0006 7/32 in. 0.35 in. 0.30 in. 0.56 in. 0.51 in. 0.56 in. 0.85 in. 0.56 in. 0.02 lb.
S0755-0007 1/4 in. 0.41 in. 0.35 in. 0.63 in. 0.57 in. 0.63 in. 0.96 in. 0.63 in. 0.03 lb.
S0755-0009 5/16 in. 0.48 in. 0.41 in. 0.77 in. 0.69 in. 0.77 in. 1.19 in. 0.77 in. 0.05 lb.
S0755-0010 3/8 in. 0.55 in. 0.48 in. 0.90 in. 0.82 in. 0.90 in. 1.44 in. 0.90 in. 0.09 lb.

Download Manufacturer Specification (PDF)

Confirm the required ordering SKU, dimensions, load rating and application before purchase.

Installation & Product Questions

How do I select the correct size?

Use the exact ordering SKU and compare every listed dimension with your existing hardware or installation. Confirm thread size, pin or rope diameter, and overall dimensions before ordering.

What should I verify before installation?

Confirm alloy, dimensions, mating hardware, mounting surface, and the intended marine or architectural application. Use compatible fasteners and follow applicable installation requirements.

What inspection and maintenance are recommended?

Inspect the complete assembly before use and periodically afterward. Replace components showing distortion, cracks, damaged threads, corrosion, excessive wear, or unreliable locking action. Rinse salt and contamination away with fresh water.

Need technical information? Please request product information before ordering if fit, loading, installation, or compatibility is uncertain.
