Rail End Mount In Stainless Steel 316 Marine Grade S3676-0055

Stainless Steel Inward and Outward End Mounts

Price range: $20.62 through $22.81

Stainless Steel Inward and Outward End Mounts

Compare the linked S3676/S3677 ordering SKUs and select the exact size. Each child item retains its current price, inventory, weight and SKU.

Need technical information?

Questions about specifications, installation, compatibility, pricing, or shipping?

Request Product Information
SKU: FAM-S3676-77 Category:

Stainless Steel Inward and Outward End Mounts

This grouped family page brings the existing S3676-77 ordering SKUs together so customers can compare sizes and select the exact item. Each linked child retains its current price, inventory, weight and SKU.

SSM Product Information

Key Specifications

Family SKU FAM-S3676-77
Ordering series S3676-77
Material Stainless Steel
Available ordering choices 2
SSM Technical Specifications

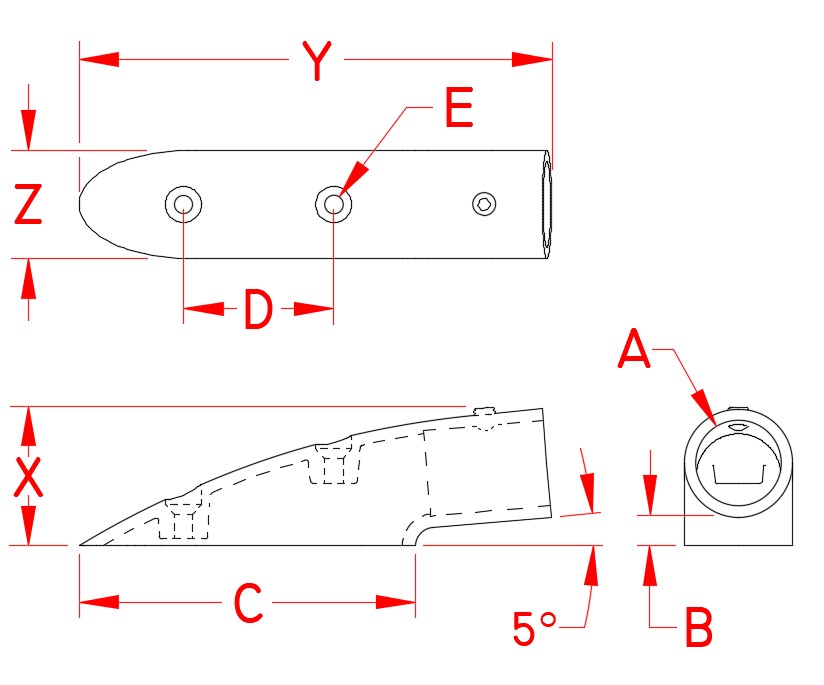

Dimensional Drawing

Stainless Steel Inward and Outward End Mounts reference image

Drawing letters correspond to the dimensions in the size table below.

Available Sizes

ITEM A(size) B C D E FASTENER X Y Z WT(lb) PRODUCT CONFIGURATION
S3676-0055 3/4″ 0.10″ 3.77″ 1.87″ 0.19″ #10 Screws 0.94″ 5.59″ 0.92″ 0.37 END OUT MOUNT 7/8 in. 5.5 degree
S3677-0055 7/8″ 0.30″ 3.49″ 1.60″ 0.18″ #10 Screws 1.23″ 4.89″ 1.15″ 0.39 END IN MOUNT 7/8 in. 5.5 degree

Download Family Specification (PDF)

Confirm the required ordering SKU, dimensions, load rating and application before purchase.

Installation & Product Questions

How do I select the correct size?

Use the exact ordering SKU and compare every listed dimension with your existing hardware or installation. Where several sizes are shown, confirm thread size, pin or rope diameter, and overall dimensions before ordering.

What should I verify before installation?

Confirm alloy, dimensions, mating hardware, mounting surface, and the intended marine or architectural application. Use compatible fasteners and follow applicable installation requirements.

What inspection and maintenance are recommended?

Inspect the complete assembly before use and periodically afterward. Replace components showing distortion, cracks, damaged threads, corrosion, excessive wear, or unreliable locking action. Rinse salt and contamination away with fresh water.

Need technical information? Please request product information before ordering if fit, loading, installation, or compatibility is uncertain.
