Metric Lifting Eye Nut 316 NM Marine Grade S0322-0

316 Stainless Steel Metric Forged Lifting Eye Nuts

Price range: $14.24 through $84.76

316 Stainless Steel Metric Forged Lifting Eye Nuts

Compare the linked S0322 ordering SKUs and select the exact size. Each child item retains its current price, inventory, weight and SKU.

Need technical information?

Questions about specifications, installation, compatibility, pricing, or shipping?

Request Product Information
SKU: FAM-S0322-M Category:

316 Stainless Steel Metric Forged Lifting Eye Nuts

This grouped family page brings the existing S0322-M ordering SKUs together so customers can compare sizes and select the exact item. Each linked child retains its current price, inventory, weight and SKU.

SSM Product Information

Key Specifications

Family SKU FAM-S0322-M
Ordering series S0322-M
Material Stainless Steel
Available ordering choices 6
SSM Technical Specifications

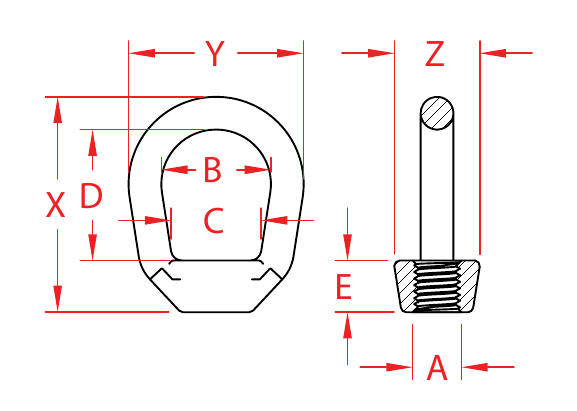

Dimensional Drawing

316 Stainless Steel Metric Forged Lifting Eye Nuts dimensional drawing

Drawing letters correspond to the dimensions in the size table below.

Available Sizes

ITEM A (size) B C D E X (height) Y (length) Z (width) WLL (lb) WT (lb)
S0322-M007 M6 0.75″ 0.59″ 1.06″ 0.38″ 1.70″ 1.26″ 0.58″ 460 0.08
S0322-M008 M8 0.75″ 0.59″ 1.06″ 0.38″ 1.70″ 1.26″ 0.58″ 780 0.08
S0322-M010 M10 1.25″ 1.00″ 1.50″ 0.63″ 2.50″ 2.00″ 0.93″ 1,160 0.31
S0322-M013 M12 1.25″ 1.00″ 1.50″ 0.63″ 2.50″ 2.00″ 0.93″ 2,150 0.27
S0322-M016 M16 1.50″ 1.19″ 2.00″ 0.69″ 3.18″ 2.50″ 1.15″ 3,440 0.59
S0322-M020 M18 1.75″ 1.25″ 2.38″ 0.88″ 3.82″ 3.00″ 1.30″ 5,140 0.97

Download Family Specification (PDF)

Dimensions and load values are reproduced from the source product specification. Confirm the required ordering SKU and application before purchase.

Installation & Product Questions

How do I select the correct size?

Use the exact ordering SKU and compare every listed dimension with your existing hardware or installation. Confirm thread size, pin or rope diameter, and overall dimensions before ordering.

What should I verify before installation?

Confirm alloy, dimensions, mating hardware, mounting surface, and the intended marine or architectural application. Use compatible fasteners and follow applicable installation requirements.

What inspection and maintenance are recommended?

Inspect the complete assembly before use and periodically afterward. Replace components showing distortion, cracks, damaged threads, corrosion, excessive wear, or unreliable locking action. Rinse salt and contamination away with fresh water.

Need technical information? Please request product information before ordering if fit, loading, installation, or compatibility is uncertain.
