316-NM Stainless Steel Metric Lifting Eye Nuts

316-NM Stainless Steel Metric Lifting Eye Nuts

Drop-forged lifting eye nuts with metric threads, sizes M6 to M18. A is the metric thread designation; all other dimensions in this table are inches. B, C and D describe the eye opening as shown in the drawing; E is base height.

SSM Product Information

Key Specifications

Family SKU	FAM-S0322-M
Ordering series	S0322-M
Material	316-NM Stainless Steel
Available ordering choices	6

SSM Technical Specifications

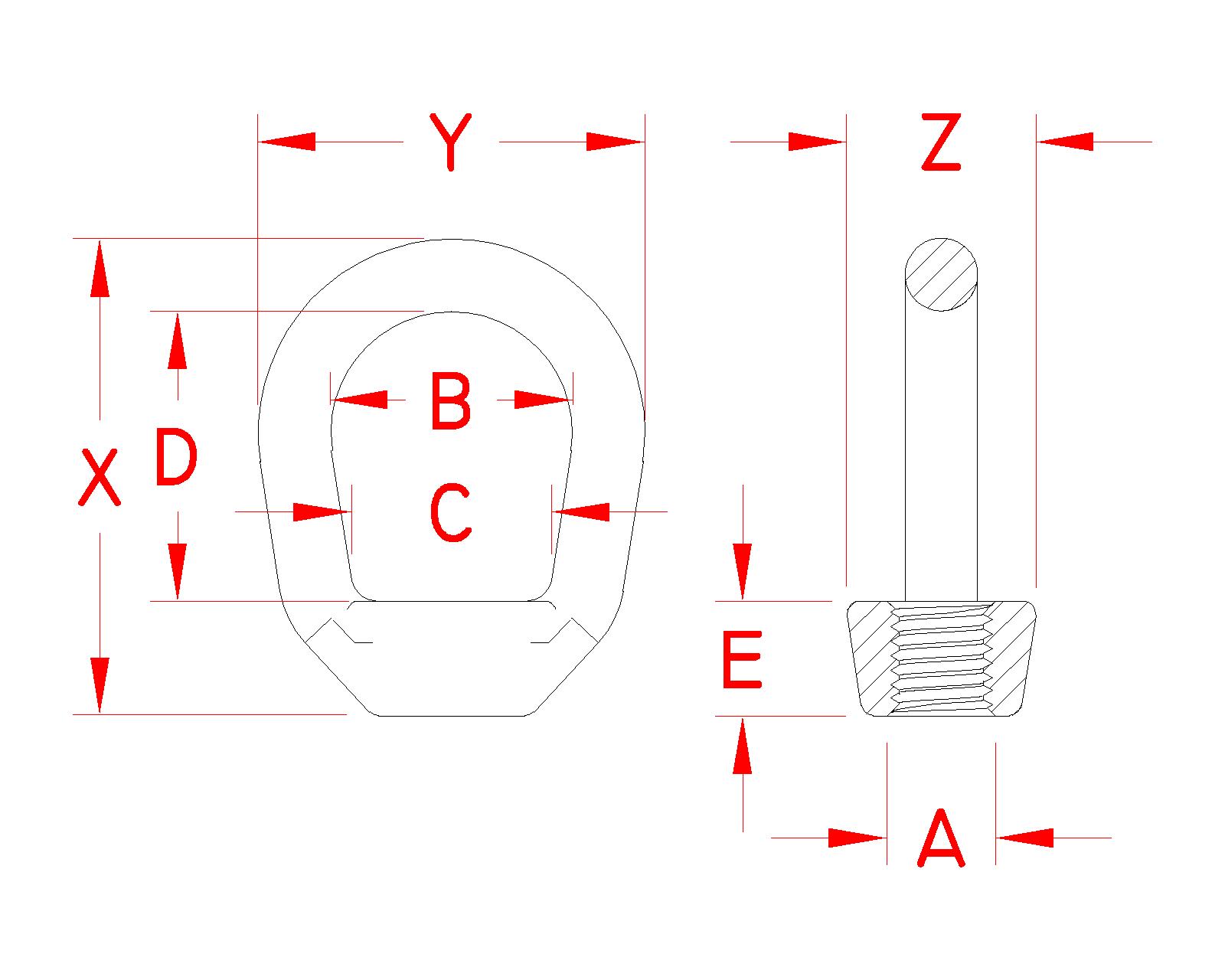

Dimensional Drawing

Drop-forged lifting eye nuts with metric threads, sizes M6 to M18. A is the metric thread designation; all other dimensions in this table are inches. B, C and D describe the eye opening as shown in the drawing; E is base height.

Available Sizes

ITEM	A thread	B	C	D	E	X height	Y length	Z width	WLL lb	WT lb
S0322-M007	M6	0.75″	0.59″	1.06″	0.38″	1.70″	1.26″	0.58″	460	0.08
S0322-M008	M8	0.75″	0.59″	1.06″	0.38″	1.70″	1.26″	0.58″	Confirmation required	0.08
S0322-M010	M10	1.25″	1.00″	1.50″	0.63″	2.50″	2.00″	0.93″	1,160	0.31
S0322-M013	M12	1.25″	1.00″	1.50″	0.63″	2.50″	2.00″	0.93″	2,150	0.27
S0322-M016	M16	1.50″	1.19″	2.00″	0.69″	3.18″	2.50″	1.15″	3,440	0.59
S0322-M020	M18	1.75″	1.25″	2.38″	0.88″	3.82″	3.00″	1.30″	5,140	0.97

Download corrected specification (PDF)

Dimensions and load values are reproduced from the source product specification. Confirm the required ordering SKU and application before purchase.

Dimensions are nominal (±3%) and subject to change. All dimensions are inches except metric thread designations. WLL = working load limit; WT = unit weight.

Specification confirmation required: S0322-M008 (M8): Suncor’s webpage lists WLL 480 lb; its PDF lists 780 lb. Working load limit requires written confirmation from Suncor before load selection or use.

Checked against Suncor’s product page and manufacturer specification on October 16, 2026.
