Aluminum Hook-to-Eye Turnbuckles with Stainless Steel Ends

Aluminum Hook-to-Eye Turnbuckles with Stainless Steel Ends

Price range: $7.66 through $25.92

Aluminum Hook-to-Eye Turnbuckles with Stainless Steel Ends

Compare the linked A0154 ordering SKUs and select the exact size. Each child item retains its current price, inventory, weight and SKU.

Need technical information?

Questions about specifications, installation, compatibility, pricing, or shipping?

Request Product Information
SKU: FAM-A0154-HE Categories: ,

Aluminum Hook-to-Eye Turnbuckles with Stainless Steel Ends

This grouped family page brings the existing A0154-HE ordering SKUs together so customers can compare sizes and select the exact item. Each linked child retains its current price, inventory, weight and SKU.

SSM Product Information

Key Specifications

Family SKU FAM-A0154-HE
Ordering series A0154-HE
Material Aluminum with Stainless Steel Ends
Available ordering choices 4
SSM Technical Specifications

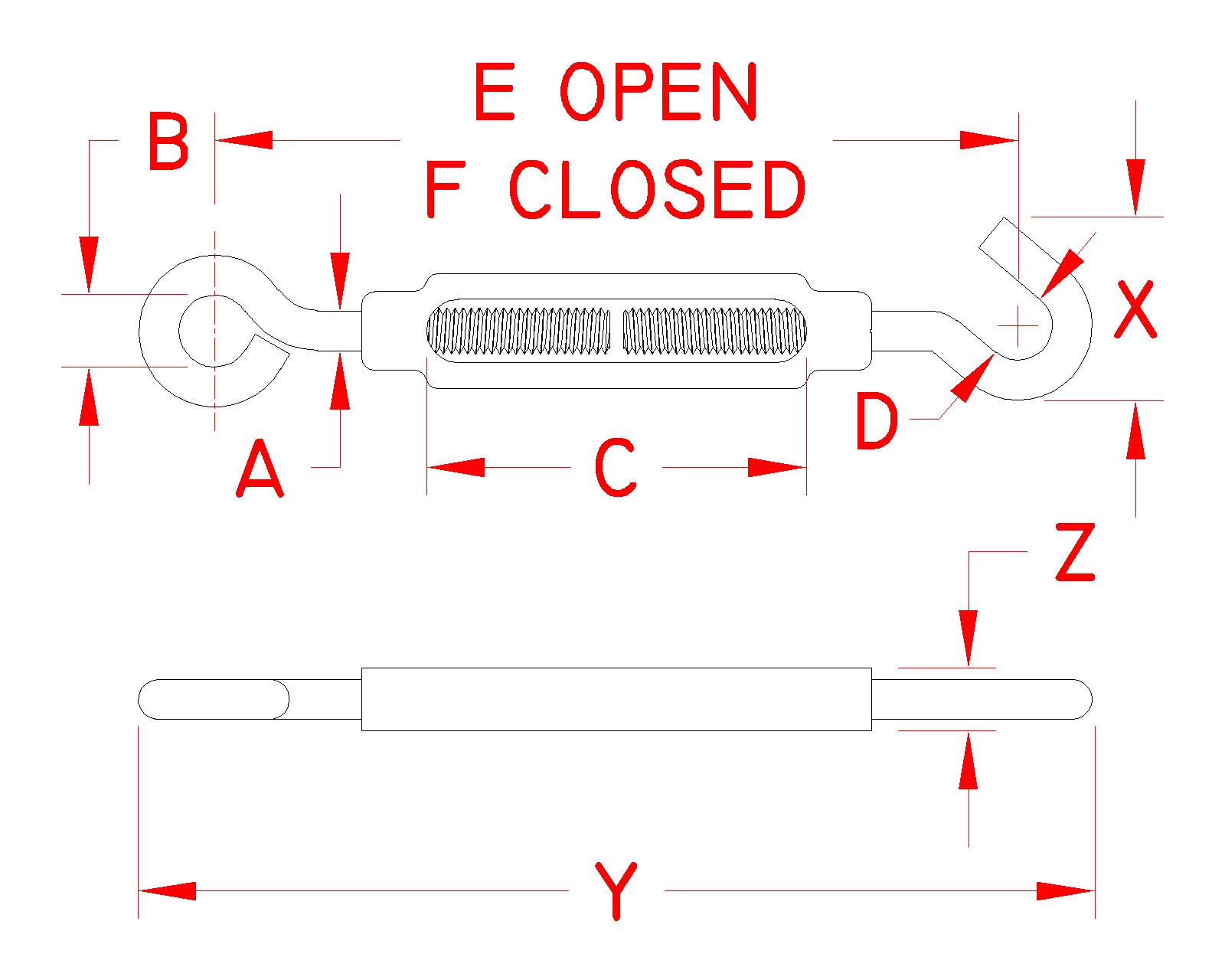

Dimensional Drawing

Aluminum Hook-to-Eye Turnbuckles with Stainless Steel Ends dimensional drawing

Drawing letters correspond to the dimensions in the size table below.

Available Sizes

ITEM A(size) B C(adjustment) D E F X Y Z WLL(lb) WT(lb)
A0154-HE05-A 3/16″ 0.31″ 1.61″ 0.26″ 5.02″ 3.51″ 0.82″ 4.03″ 0.28″ 40 0.04
A0154-HE07-A 1/4″ 0.52″ 2.04″ 0.48″ 6.38″ 4.36″ 1.12″ 5.43″ 0.36″ 80 0.10
A0154-HE08-A 5/16″ 0.49″ 2.62″ 0.48″ 8.25″ 5.68″ 1.35″ 6.68″ 0.43″ 125 0.20
A0154-HE10-A 3/8″ 0.63″ 2.98″ 0.60″ 9.63″ 6.75″ 1.62″ 7.94″ 0.55″ 180 0.34

Download Family Specification (PDF)

Confirm the required ordering SKU, dimensions, load rating and application before purchase.

Installation & Product Questions

How do I select the correct size?

Use the exact ordering SKU and compare every listed dimension with your existing hardware or installation. Confirm thread size, pin or rope diameter, and overall dimensions before ordering.

How do I confirm thread direction and end fittings?

Check whether each component is left-hand or right-hand threaded and verify the eye, jaw, toggle, stud, or swage termination. Opposite thread directions are not interchangeable.

What inspection and maintenance are recommended?

Inspect the complete assembly before use and periodically afterward. Replace components showing distortion, cracks, damaged threads, corrosion, excessive wear, or unreliable locking action. Rinse salt and contamination away with fresh water.

Need technical information? Please request product information before ordering if fit, loading, installation, or compatibility is uncertain.
