Stainless Steel Bolt Anchor Shackle 1 in. SS 316
Grade: 316 Stainless, Drop Forged and Load Rated
Stainless Steel Marine offers stainless steel shackle components shackles for architectural and marine applications. These stainless steel shackles will satisfy your expectations and exceed them as-well. These stainless steel shackle components and custom shackles are proud to be home made in the USA. Â Stainless Steel Marine has the broadest range of stainless shackles to accommodate every marine hardware requirement. The Bolt Anchor Shackle includes the oversized bolt and also provided in multiple sizes ranging from 1/4″ to 1″. These Bolt Anchor Shackles comprised of grade 316 stainless steel for extreme corrosion resistance and durable fortification, having it exemplary for a menagerie marine and architectural purposes.

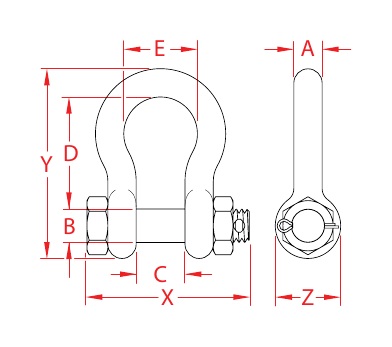

| ITEM | A (size) |
B | C | D | X | Y | Z | WLL (lb) |
WT (lb) |
|---|---|---|---|---|---|---|---|---|---|
| S0115-SA07 | 1/4″ | 0.31″ | 0.46″ | 0.87″ | 1.59″ | 1.55″ | 0.61″ | 1,000 | 0.10 |
| S0115-SA08 | 5/16″ | 0.38″ | 0.52″ | 1.02″ | 1.80″ | 1.85″ | 0.72″ | 1,300 | 0.16 |
| S0115-SA10 | 3/8″ | 0.44″ | 0.65″ | 1.24″ | 2.28″ | 2.24″ | 0.90″ | 1,500 | 0.30 |
| S0115-SA12 | 7/16″ | 0.50″ | 0.75″ | 1.43″ | 2.62″ | 2.62″ | 1.00″ | 2,000 | 0.43 |
| S0115-SA13 | 1/2″ | 0.63″ | 0.79″ | 1.58″ | 2.87″ | 2.93″ | 1.18″ | 3,000 | 0.72 |
| S0115-SA16 | 5/8″ | 0.75″ | 1.05″ | 1.94″ | 3.61″ | 3.64″ | 1.45″ | 4,000 | 1.31 |
| S0115-SA20 | 3/4″ | 0.88″ | 1.20″ | 2.40″ | 4.18″ | 4.40″ | 1.72″ | 6,000 | 2.20 |
| S0115-SA22 | 7/8″ | 1.01″ | 1.45″ | 2.88″ | 4.84″ | 5.25″ | 1.94″ | 8,000 | 3.41 |
| S0115-SA25 | 1″ | 1.13″ | 1.67″ | 3.20″ | 5.18″ | 5.85″ | 2.19″ | 10,000 | 4.69 |
