Stainless Steel LONG U-BOLT+ 4 NUTS 304, 1/2 in., 3 in. x 5-3/4 in.

$33.15

Stainless Steel LONG U-BOLT+ 4 NUTS 304, 1/2 in., 3 in. x 5-3/4 in.

SKU: S0352-13075 Category: Tags: , , ,
ALTERNATE SIZES AND RELATED ITEMS:
Click link to see details and purchase.
Stainless Steel LONG U-BOLT+ 4 NUTS 304, 1/4 in., 1/2 in. x 2-15/16 in.
sku S0352-07013 - $5.70Stainless Steel LONG U-BOLT+ 4 NUTS 304, 1/4 in., 3/4 in. x 3-3/16 in.
sku S0352-07020 - $5.92Stainless Steel LONG U-BOLT+ 4 NUTS 304, 1/4 in.. 1 in. x 3-7/16 in.
sku S0352-07025 - $6.09Stainless Steel LONG U-BOLT+ 4 NUTS 304, 3/8 in., 1-1/4 in. x 3-1/4 in.
sku S0352-10032 - $12.83Stainless Steel LONG U-BOLT+ 4 NUTS 304, 3/8 in., 1-1/2 in. x 4 in.
sku S0352-10038 - $13.40Stainless Steel LONG U-BOLT+ 4 NUTS 304, 3/8 in., 2 in. x 4-7/16 in.
sku S0352-10050 - $14.26Stainless Steel LONG U-BOLT+ 4 NUTS 304, 1/2 in., 2-1/2 in. x 5-1/4 in.
sku S0352-13065 - $31.11Stainless Steel LONG U-BOLT+ 4 NUTS 304, 1/2 in., 3-1/2 in. x 6-1/4 in.
sku S0352-13090 - $34.98Stainless Steel LONG U-BOLT+ 4 NUTS 304, 1/2 in., 4 in. x 6-3/4 in.
sku S0352-13100 - $36.87Stainless Steel LONG U-BOLT+ 4 NUTS 304, 1/2 in., 5 in. x 7-13/16 in.
sku S0352-13125 - $40.96Stainless Steel LONG U-BOLT+ 4 NUTS 304, 5/8 in., 6 in. x 9-1/2 in.
sku S0352-16150 - $50.67Stainless Steel LONG U-BOLT+ 4 NUTS 304, 5/8 in., 8 in. x 11-1/8 in.
sku S0352-16200 - $56.08Stainless Steel LONG U-BOLT+ 4 NUTS 304, 3/4 in., 10 in. x 13-3/8 in.
sku S0352-20250 - $107.65Stainless Steel LONG U-BOLT+ 4 NUTS 304, 7/8 in., 12 in. x 16-1/16 in.
sku S0352-22300 - $171.84Stainless Steel LONG U-BOLT+ 4 NUTS 304, 7/8 in., 14 in. x 17-5/16 in.
sku S0352-22350 - $185.31Stainless Steel LONG U-BOLT 4 NUTS SS 304 7/8 in. x 16 in. x 19-5/16 in.
sku S0352-22400 - $203.41

Description

Stainless Steel Long U Bolt With 4 Nuts 304 Marine Grade 1/2 in. x 3 in. x 5-3/4 in.

Grade: 304

Stainless Steel Marine offers stainless steel Bolt components for architectural and marine applications. These stainless steel Bolts will satisfy your expectations and exceed them as-well. Stainless Steel Marine has the broadest range of stainless Bolts to accommodate every marine hardware requirement. These Bolts come in sizes ranging from 7/8″ to 1/4″. These Bolts come with 4 nuts. These Bolts are compressed of grade 304 stainless steel for extreme corrosion resistance and durable fortification, having it exemplary for a menagerie marine and architectural purposes.

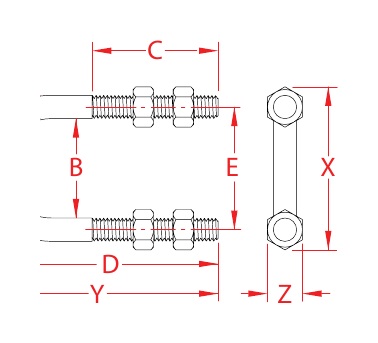

ITEM A
(size)		 B C D E X Y Z WLL
(lb)		 WT
(lb)
S0352-07013 1/4″ 0.88″ 2.50″ 2.94″ 1.13″ 1.57″ 3.19″ 0.44″ 435 0.10
S0352-07020 1/4″ 1.13″ 2.50″ 3.19″ 1.38″ 1.82″ 3.44″ 0.44″ 435 0.11
S0352-07025 1/4″ 1.38″ 2.50″ 3.44″ 1.63″ 2.07″ 3.69″ 0.44″ 435 0.11
S0352-10032 3/8″ 1.69″ 2.38″ 3.72″ 2.07″ 2.64″ 4.10″ 0.57″ 1,090 0.28
S0352-10038 3/8″ 2.00″ 2.50″ 4.00″ 2.38″ 2.95″ 4.38″ 0.57″ 1,090 0.30
S0352-10050 3/8″ 2.44″ 2.50″ 4.44″ 2.82″ 3.39″ 4.82″ 0.57″ 1,090 0.33
S0352-13065 1/2″ 2.94″ 3.00″ 5.22″ 3.44″ 4.19″ 5.72″ 0.75″ 2,020 0.73
S0352-13075 1/2″ 3.56″ 3.00″ 5.75″ 4.06″ 4.81″ 6.25″ 0.75″ 2,020 0.79
S0352-13090 1/2″ 4.06″ 3.00″ 6.25″ 4.56″ 5.31″ 6.75″ 0.75″ 2,020 0.85
S0352-13100 1/2″ 4.56″ 3.00″ 6.75″ 5.06″ 5.81″ 7.25″ 0.75″ 2,020 0.90
S0352-13125 1/2″ 5.63″ 3.00″ 7.81″ 6.13″ 6.88″ 8.31″ 0.75″ 2,020 1.03
S0352-16150 5/8″ 6.75″ 3.75″ 9.69″ 7.38″ 8.38″ 10.32″ 0.94″ 3,230 1.92
S0352-16200 5/8″ 8.75″ 3.75″ 11.50″ 9.38″ 10.38″ 12.13″ 0.94″ 3,230 2.22
S0352-20250 3/4″ 10.88″ 4.00″ 13.88″ 11.63″ 12.88″ 14.63″ 1.13″ 4,830 4.08
S0352-22300 7/8″ 12.88″ 4.25″ 16.13″ 13.75″ 15.00″ 17.00″ 1.29″ 6,730 5.70
S0352-22350 7/8″ 14.13″ 4.25″ 17.50″ 15.00″ 16.50″ 18.38″ 1.29″ 6,730 6.70
S0352-22400 7/8″ 16.13″ 4.25″ 19.25″ 17.00″ 18.25″ 20.13″ 1.29″ 6,730 7.50

Additional information

Weight 0.79 lbs
