Stainless Steel Rated Snatch Block Wire 316 Marine Grade 6 in. WIRE (S0413-1020)
Grade: 316
Stainless Steel Marine offers stainless steel Block components for architectural and marine applications. These stainless steel Blocks will satisfy your expectations and exceed them as-well. Stainless Steel Marine has the broadest range of stainless Blocks to accommodate every marine hardware requirement. These Blocks come in sizes ranging from 1″ to 3/16″ that fit that wire or fiber rope size from 1″ to 3/16″. These Blocks are comprised of grade 316 stainless steel for extreme corrosion resistance and durable fortification, having it exemplary for a menagerie marine and architectural purposes.

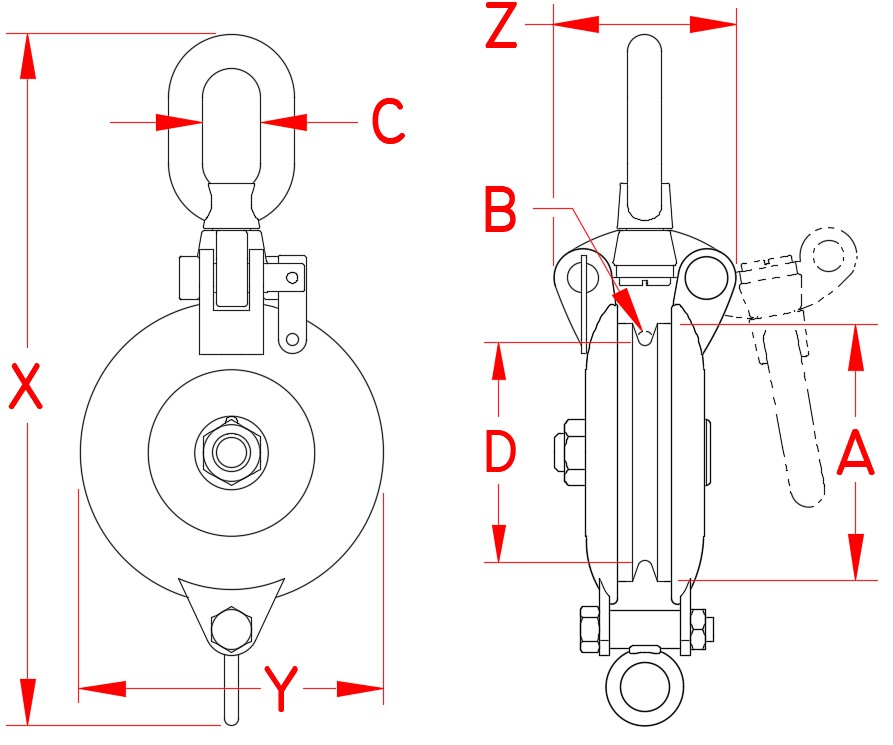

| ITEM | A | B (wire size) |
C | D | X | Y | Z | WLL (lb) |
WT (lb) |
Sheave (part #) |
|---|---|---|---|---|---|---|---|---|---|---|
| S0428-0075-W | 3.25″ | 3/16″ | 0.78″ | 2.75″ | 9.00″ | 3.62″ | 2.58″ | 2,000 | 2.84 | S0413-0510 |
| S0428-0100-W | 4.25″ | 1/4″ | 0.95″ | 3.50″ | 11.00″ | 5.00″ | 2.98″ | 3,000 | 5.60 | S0413-0713 |
| S0428-0125-W | 5.25″ | 5/16″ | 1.06″ | 4.28″ | 13.25″ | 5.75″ | 3.43″ | 4,000 | 8.14 | S0413-0816 |
| S0428-0150-W | 6.25″ | 3/8″ | 1.15″ | 5.25″ | 15.00″ | 6.88″ | 4.17″ | 5,000 | 11.28 | S0413-1020 |
