316 Stainless Steel Swage Stemball Terminals

S0740 swage stemball terminals provide a rounded ball-end termination for stainless steel wire rope. They are drop forged and precision machined from Grade 316 stainless steel for marine, architectural railing and industrial cable applications.

Select the exact ordering SKU for the wire diameter. Machine swaging is required; verify the finished after-swage diameter before installation.

Technical Specifications

SKU Number Wire (A) B C D Before D After X Y Z Weight
S0740-0003 1/8 in. 1.54 in. 2.08 in. 0.25 in. 0.22 in. 0.51 in. 2.26 in. 0.51 in. 0.03 lb.
S0740-0004 5/32 in. 1.77 in. 2.52 in. 0.30 in. 0.25 in. 0.61 in. 2.73 in. 0.61 in. 0.05 lb.
S0740-0005 3/16 in. 2.00 in. 2.81 in. 0.36 in. 0.31 in. 0.73 in. 3.05 in. 0.73 in. 0.08 lb.
S0740-0007 1/4 in. 2.53 in. 3.31 in. 0.49 in. 0.44 in. 0.78 in. 3.55 in. 0.78 in. 0.16 lb.
S0740-0009 5/16 in. 3.25 in. 4.23 in. 0.64 in. 0.56 in. 1.00 in. 4.57 in. 1.00 in. 0.35 lb.
S0740-0010 3/8 in. 3.48 in. 4.69 in. 0.70 in. 0.63 in. 1.06 in. 5.11 in. 1.06 in. 0.46 lb.

Dimensions are nominal and may change without notice. Confirm compatibility and installation requirements before ordering.

SSM Product Information

Key Specifications

Family SKU FAM-S0740
Ordering series S0740
Material Stainless steel
Available ordering choices 6
SSM Technical Specifications

Dimensional Drawing

Stainless Steel Swage Stemball Terminals dimensional drawing

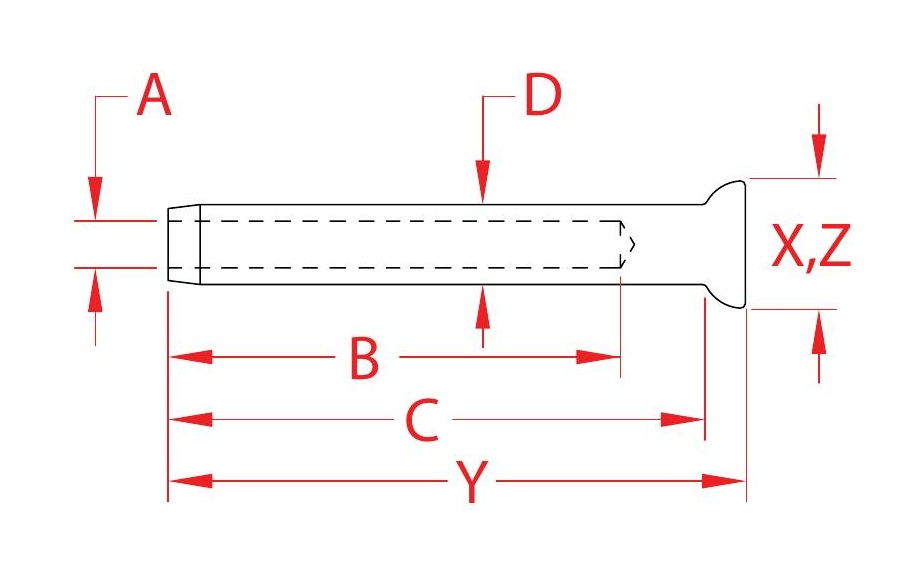

Drawing letters correspond to the dimensions in the size table below.

Available Sizes

Ordering SKU A B C D X Y Z Weight
S0740-0003 1/8” 1.54" 2.08” 0.25" 0.22" 0.51" 2.26" 0.51"
S0740-0004 5/32” 1.77" 2.52” 0.30" 0.25" 0.61" 2.73" 0.61"
S0740-0005 3/16” 2.00" 2.81” 0.36" 0.31" 0.73" 3.05" 0.73"
S0740-0007 1/4” 2.53" 3.31” 0.49" 0.44" 0.78" 3.55" 0.78"
S0740-0009 5/16” 3.25" 4.23” 0.64" 0.56" 1.00" 4.57" 1.00"
S0740-0010 3/8” 3.48" 4.69” 0.70" 0.63" 1.06" 5.11" 1.06"

Download Family Specification (PDF)

Confirm the required ordering SKU, dimensions, load rating and application before purchase.
