304 Stainless Steel Trailer Couplers

Name: 304 Stainless Steel Trailer Couplers
SKU: FAM-C0265
Price: 202.50 USD
Availability: InStock

Price range: $202.50 through $281.25

304 Stainless Steel Trailer Couplers

Compare the linked C0265 ordering SKUs and select the exact size. Each child item retains its current price, inventory, weight and SKU.

Need technical information?

Questions about specifications, installation, compatibility, pricing, or shipping?

Request Product Information

SKU: FAM-C0265 Category: Stainless Steel Trailer Hardware

304 Stainless Steel Trailer Couplers

This grouped family page brings the existing C0265 ordering SKUs together so customers can compare sizes and select the exact item. Each linked child retains its current price, inventory, weight and SKU.

SSM Product Information

Key Specifications

Family SKU	FAM-C0265
Ordering series	C0265
Material	304 Stainless Steel
Available ordering choices	4

SSM Technical Specifications

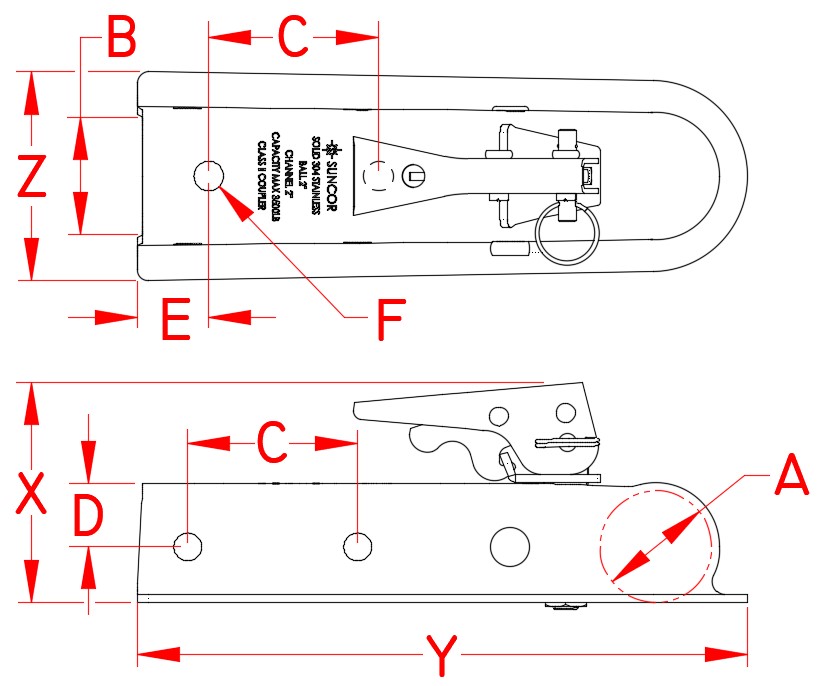

Dimensional Drawing

Drawing letters correspond to the dimensions in the size table below.

Available Sizes

ITEM	A(ball size)	B	C	D	E	F	X	Y	Z	TOWING CAPACITY(lb)	WT(lb)
C0265-4750	1-7/8″	2″	2.50″	1.19″	0.53″	0.41″	3.65″	9.00″	3.25″	2,000	2.73
C0265-4765	1-7/8″	2.74″	2.80″	1.20″	0.55″	0.38″	3.70″	9.00″	3.71″	2,000	2.45
C0265-5050	2″	2.12″	3.06″	1.00″	0.91″	0.50″	4.09″	11.00″	3.75″	3,500	4.22
C0265-5075	2″	3.06″	3.06″	1.00″	1.70″	0.53″	4.00″	11.13″	4.63″	3,500	4.57

Download Family Specification (PDF)

Confirm the required ordering SKU, dimensions, load rating and application before purchase.

Installation & Product Questions

How do I select the correct size?

Use the exact ordering SKU and compare every listed dimension with your existing hardware or installation. Confirm thread size, pin or rope diameter, and overall dimensions before ordering.

What should I verify before installation?

Confirm alloy, dimensions, mating hardware, mounting surface, and the intended marine or architectural application. Use compatible fasteners and follow applicable installation requirements.

What inspection and maintenance are recommended?

Inspect the complete assembly before use and periodically afterward. Replace components showing distortion, cracks, damaged threads, corrosion, excessive wear, or unreliable locking action. Rinse salt and contamination away with fresh water.

Need technical information? Please request product information before ordering if fit, loading, installation, or compatibility is uncertain.
