Turnbuckle Jaw
Grade: 316 Stainless Steel
UNC Thread
The Turnbuckle Jaw features right and left hand UNC threads and working load limits up to 2,800 lbs. These jaws are compatible with the closed turnbuckle bodies and are offered in sizes ranging from 3/16” to 5/8”. They are ideal for a variety of marine and industrial applications.

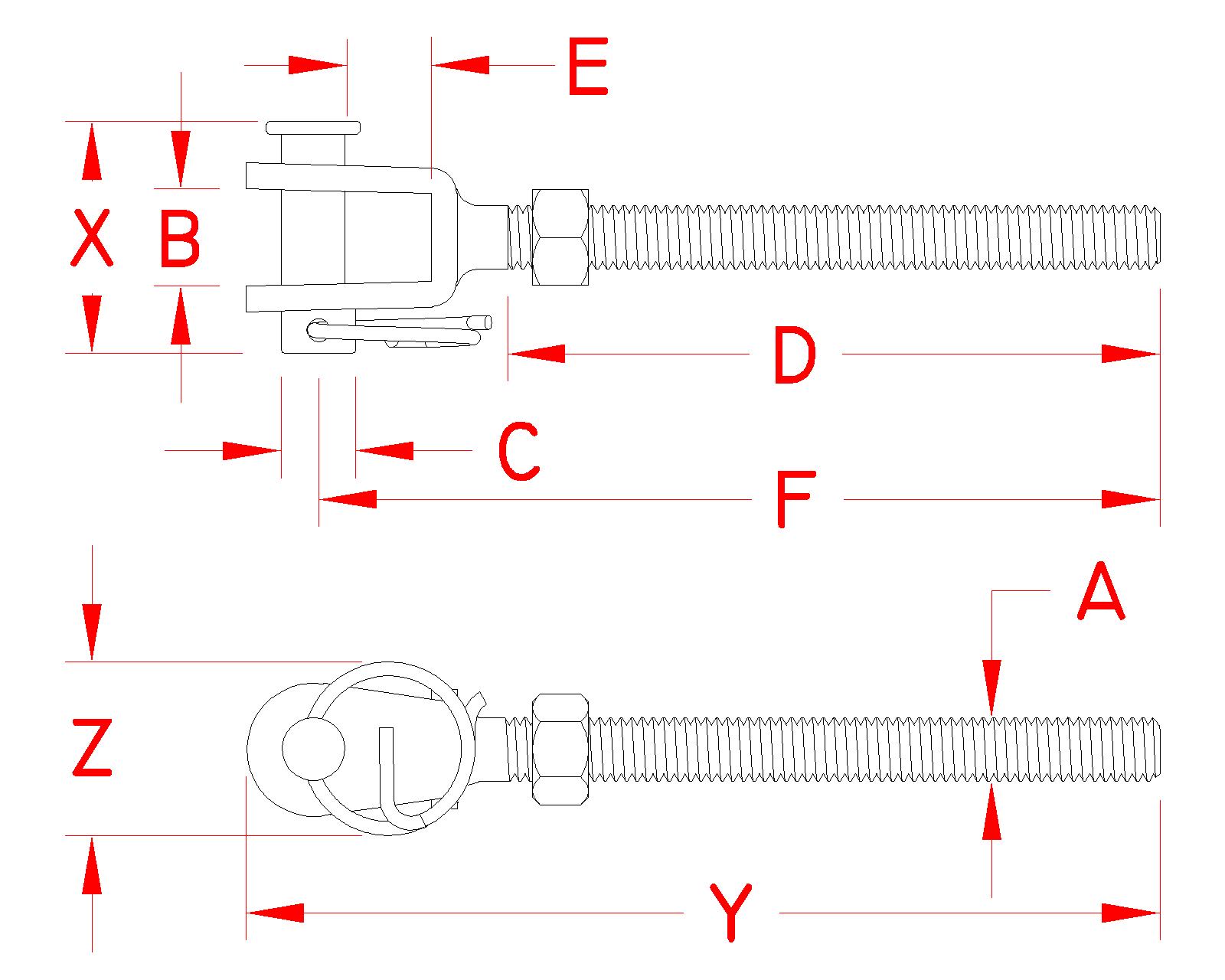

ITEM | A (size) |
B | C | D | E | WLL (lb) |
WT (lb) |
---|---|---|---|---|---|---|---|
RIGHT HAND, UNC | |||||||
P0101-RJ05 | 3/16″ | 0.19″ | 2.33″ | 0.37″ | 0.35″ | 300 | 0.04 |
P0101-RJ07 | 1/4″ | 0.23″ | 2.87″ | 0.41″ | 0.38″ | 440 | 0.06 |
P0101-RJ08 | 5/16″ | 0.30″ | 3.53″ | 0.42″ | 0.38″ | 800 | 0.11 |
P0101-RJ10 | 3/8″ | 0.38″ | 4.04″ | 0.54″ | 0.48″ | 1,200 | 0.21 |
P0101-RJ13 | 1/2″ | 0.46″ | 4.80″ | 0.71″ | 0.76″ | 2,200 | 0.38 |
P0101-RJ16 | 5/8″ | 0.62″ | 6.00″ | 0.73″ | 0.86″ | 2,800 | 0.95 |
LEFT HAND, UNC | |||||||
P0101-LJ05 | 3/16″ | 0.19″ | 2.33″ | 0.37″ | 0.35″ | 300 | 0.04 |
P0101-LJ07 | 1/4″ | 0.23″ | 2.87″ | 0.41″ | 0.38″ | 440 | 0.06 |
P0101-LJ08 | 5/16″ | 0.30″ | 3.53″ | 0.42″ | 0.38″ | 800 | 0.11 |
P0101-LJ10 | 3/8″ | 0.38″ | 4.04″ | 0.54″ | 0.48″ | 1,200 | 0.21 |
P0101-LJ13 | 1/2″ | 0.46″ | 4.80″ | 0.71″ | 0.76″ | 2,200 | 0.38 |
P0101-LJ16 | 5/8″ | 0.62″ | 6.00″ | 0.73″ | 0.86″ | 2,800 | 0.95 |
NOTE: USE WITH “CLOSED” TURNBUCKLE BODY (P0101-BD) |
