Description
Turnbuckle Stud Threaded
Grade: 316 Stainless Steel
UNC Thread
The Forged Turnbuckle Studs feature right and left hand UNC threads and working load limits up to 8,000 lbs. These studs are compatible with the forged open turnbuckle bodies and are offered in sizes ranging from 1/4” to 1”. They are ideal for marine and industrial applications.

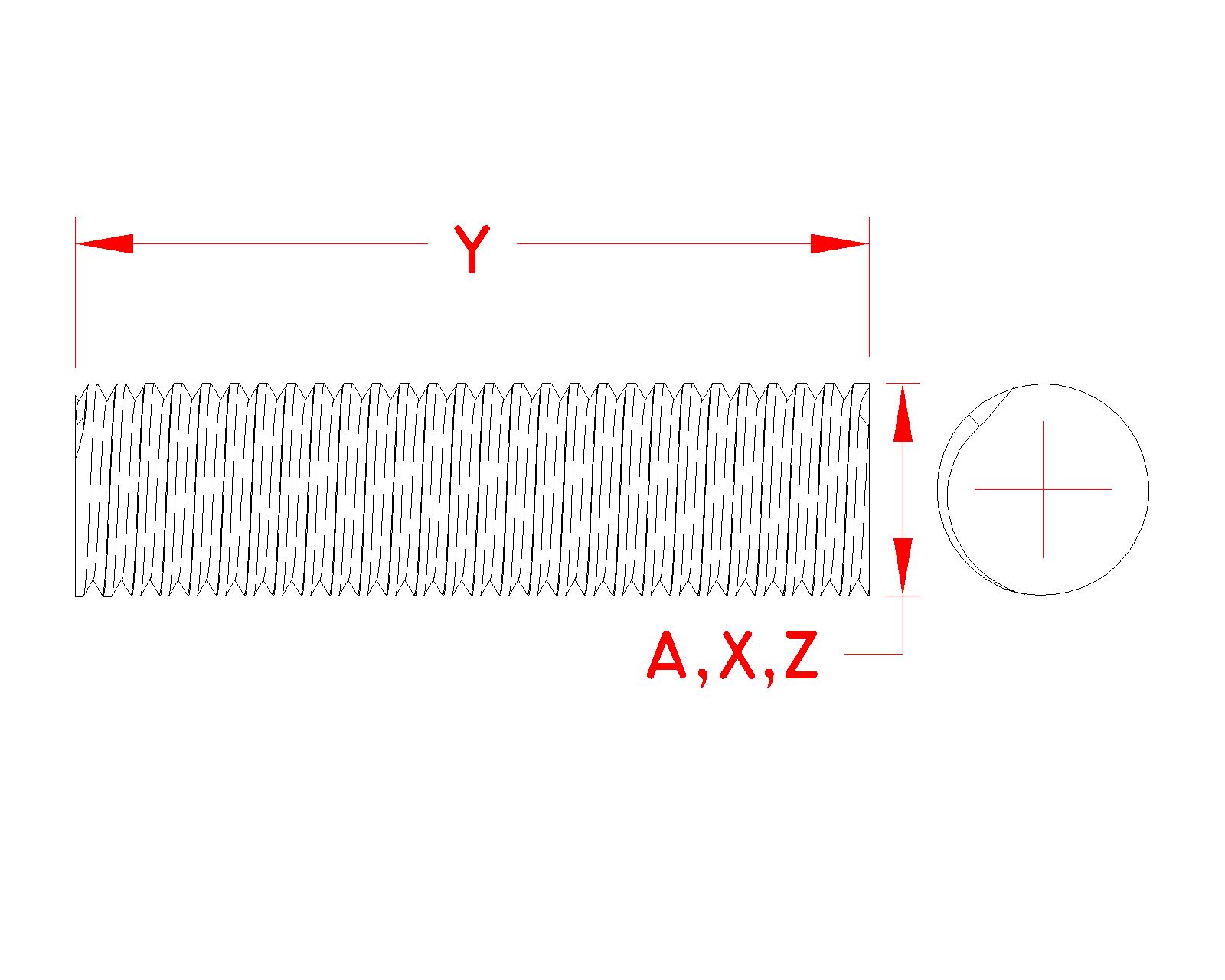

| ITEM | A (size) |
B | WLL (lb) |
WT (lb) |
|---|---|---|---|---|
| RIGHT HAND, UNC | ||||
| P0106-RT05 | 3/16″ | 2.50″ | 300 | 0.02 |
| P0106-RT07 | 1/4″ | 4.50″ | 500 | 0.05 |
| P0106-RT08 | 5/16″ | 5.25″ | 800 | 0.09 |
| P0106-RT10 | 3/8″ | 6.50″ | 1,200 | 0.16 |
| P0106-RT13 | 1/2″ | 7.00″ | 2,200 | 0.31 |
| P0106-RT16 | 5/8″ | 7.50″ | 3,500 | 0.53 |
| P0106-RT20 | 3/4″ | 8.00″ | 5,200 | 0.83 |
| P0106-RT25 | 1″ | 9.00″ | 8,000 | 1.69 |
| LEFT HAND, UNC | ||||
| P0106-LT05 | 3/16″ | 2.50″ | 300 | 0.02 |
| P0106-LT07 | 1/4″ | 4.50″ | 500 | 0.05 |
| P0106-LT08 | 5/16″ | 5.25″ | 800 | 0.09 |
| P0106-LT10 | 3/8″ | 6.50″ | 1,200 | 0.16 |
| P0106-LT13 | 1/2″ | 7.00″ | 2,200 | 0.31 |
| P0106-LT16 | 5/8″ | 7.50″ | 3,500 | 0.53 |
| P0106-LT20 | 3/4″ | 8.00″ | 5,200 | 0.83 |
| P0106-LT25 | 1″ | 9.00″ | 8,000 | 1.69 |
| NOTE: USE WITH FORGED “OPEN” TURNBUCKLE BODY (S0106-BD) | ||||
