Description
Stainless Steel Wide D Shackle With Screw Pin 316 Marine Grade 3/8 in. S0114-0010
Grade: 316
Stainless Steel Marine offers stainless steel shackle components shackles for architectural and marine applications. These stainless steel shackles will satisfy your expectations and exceed them as-well. These stainless steel shackle components and custom shackles are proud to be home made in the USA. Â Stainless Steel Marine has the broadest range of stainless shackles to accommodate every marine hardware requirement. The Wide D Shackle includes the pin and also provided in multiple sizes ranging from 1/2″ to 1/4″. These D shackles comprised of grade 316 stainless steel for extreme corrosion resistance and durable fortification, having it exemplary for a menagerie marine and architectural purposes.

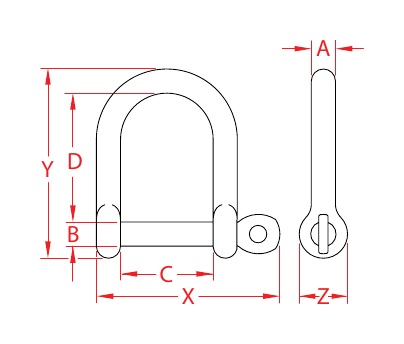

ITEM | A (size) |
B | C | D | X | Y | Z | WLL (lb) |
WT (lb) |
---|---|---|---|---|---|---|---|---|---|
S0114-0006 | 1/4″ | 0.24″ | 0.92″ | 1.31″ | 1.83″ | 1.89″ | 0.49″ | 750 | 0.07 |
S0114-0008 | 5/16″ | 0.32″ | 1.11″ | 1.22″ | 2.17″ | 2.02″ | 0.60″ | 1,000 | 0.15 |
S0114-0010 | 3/8″ | 0.40″ | 1.54″ | 2.14″ | 3.04″ | 3.12″ | 0.78″ | 1,200 | 0.33 |
S0114-0012 | 1/2″ | 0.47″ | 1.89″ | 2.59″ | 3.54″ | 3.63″ | 0.94″ | 1,500 | 0.52 |
